Used for storing, heating and mixing liquid or food materials.
Material
Stainless Steel 304 or 316L
Volume Capabilities
Various kinds of volume from minimum 50L, maximum 10,000L and even larger.
Configuration & Design Advantages
Customizable configuration details matching specific requirements; Competitive pricing combined with premium tank quality.
Minimum Order
One unit
Payment Terms
T/T or L/C
Package Type
Export standard package
Target Market
At home and abroad
Technology & Design Features
Dish cover top & bottom structure, equipped with a dimple plate jacket for cooling and high-efficiency PU Insulation.

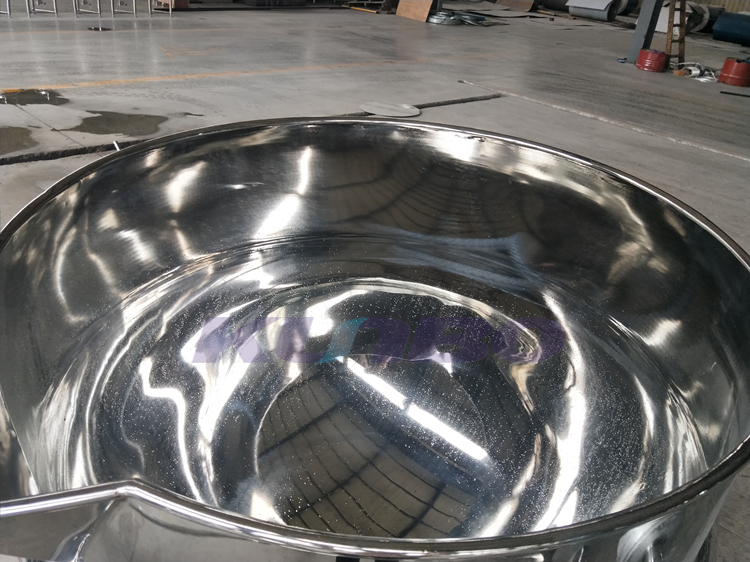

High-grade finishing: Mirror Polished (3A finish) on the interior surface, and Satin Polished (2B finish) on the exterior surface.
Robust three-layer structure consisting of the inner layer, dimple plate jacket, and insulation layer.
Top cover configuration includes inlet & spare holes, openable lid, and other modular fittings.

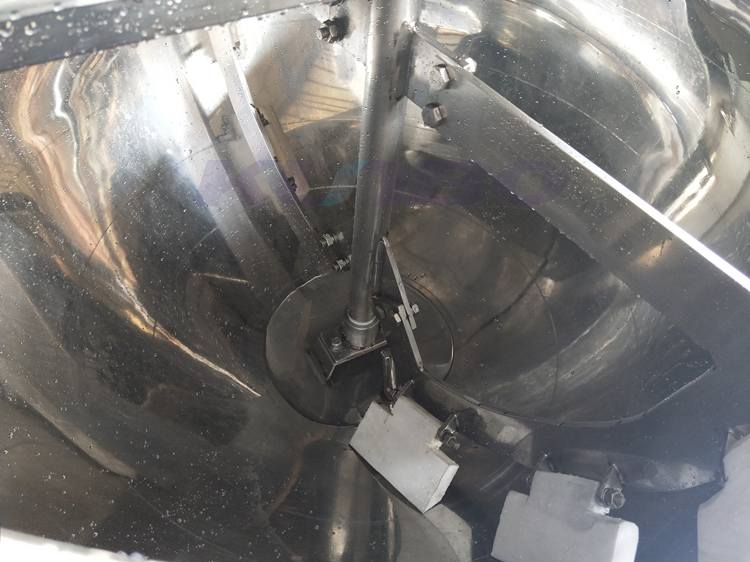

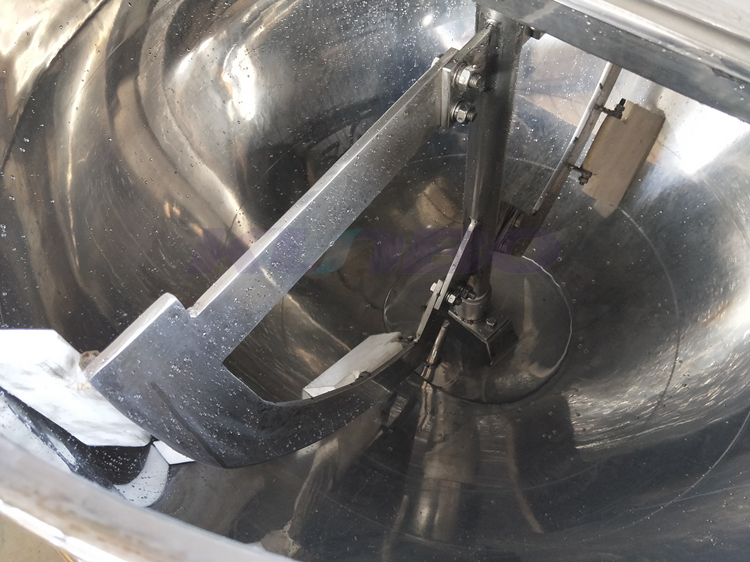

Equipped body features: Liquid level probe, thermometer/temperature probe, and functional mixing blades.
Spherical bottom cover configuration: Centre outlet, jacket inlet and outlet, with adjustable feet or casters. Customizable to specific requirements.
Customizable thickness according to application specifications.
Technical Parameters
Technical Specifications Matrix
Working Volume (L)
Dimension of Tank (D*H) mm
Total Height (H) mm
Diameter of Inlet & Outlet (mm)
PU Insulation (mm)
200
800*1100
1700
Dia 38
50
300
900*1300
1750
Dia 38
50
400
1000*1400
1900
Dia 38
50
500
1100*1500
2000
Dia 38
50
800
1300*1700
2200
Dia 51
50
1000
1400*1800
2200
Dia 51
50

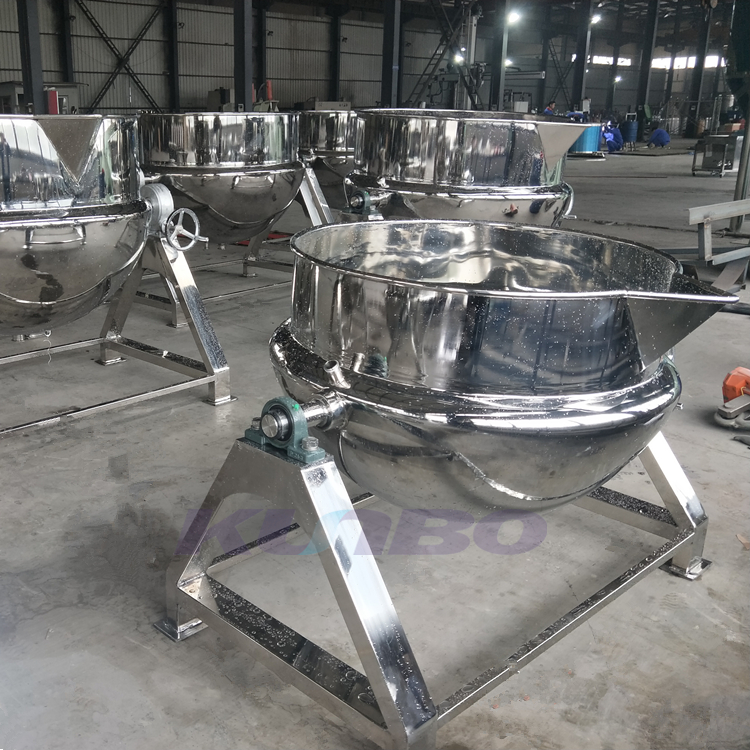

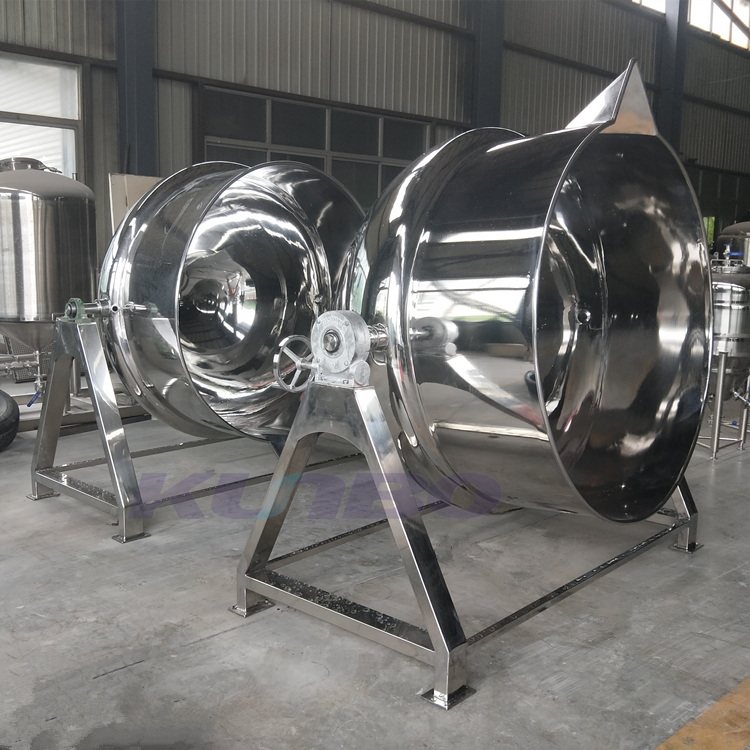

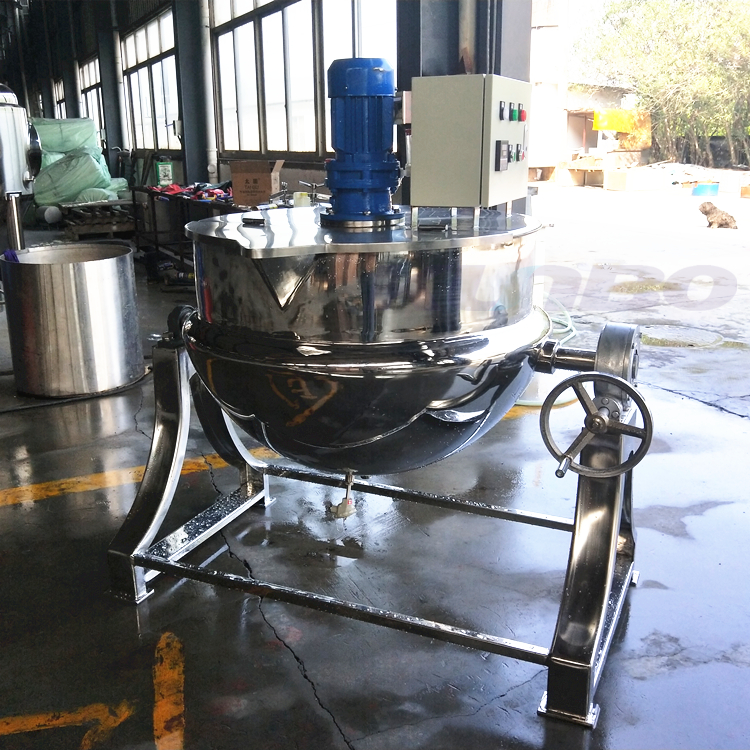

Product Gallery
Frequently Asked Questions

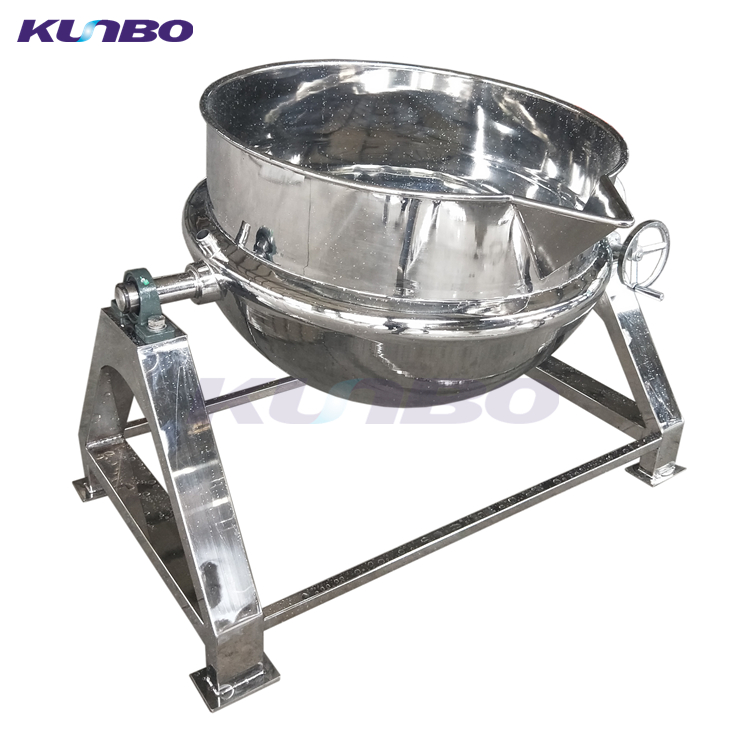

What are the main applications of this jacketed cooking kettle?
The jacketed cooking kettle is designed for storing, heating, and mixing liquid or food materials. It is widely used in pharmaceuticals, beverage production, food processing, biotechnology, and chemical container industries.
What materials are used to manufacture the jacketed cooking kettle?
We use high-grade Stainless Steel 304 or Stainless Steel 316L to ensure long-term durability, excellent corrosion resistance, and compliance with strict food and pharmaceutical hygiene regulations.
What capacity sizes (volumes) are available for ordering?
We supply various volume capabilities starting from a minimum of 50L, scaling up to 10,000L. Customization for even larger capacities is also available based on specific requirements.
Can the configuration and technical dimensions be customized?
Yes, the configuration details, thickness, layout dimensions, and spherical bottom cover setup (such as center outlet options, adjustable feet, or casters) can all be custom-designed according to your requirements.
What is the minimum order quantity (MOQ) and packaging standard?
The minimum order quantity is one unit. Every unit is packaged using export standard packaging to ensure damage-free transit for domestic and international shipments.
